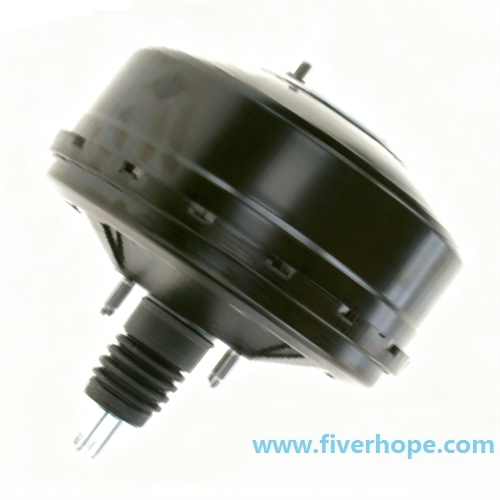

Power Brake Servo A0004311727 for Mercedes-Benz Viano W639 2003-

Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly, Servo freno
Part #.: 0004311727, A0004311727

Conditions: Brand New, High Quality

This Part Fits:

Mercedes-Benz Viano W639 2003-
Mercedes-Benz  Vito Mixto Bus W639 2003-



Remarks:
Custom design is available(based on drawings or sample).



What is Brake Booster and its function in vehicle ?



The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.

When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
