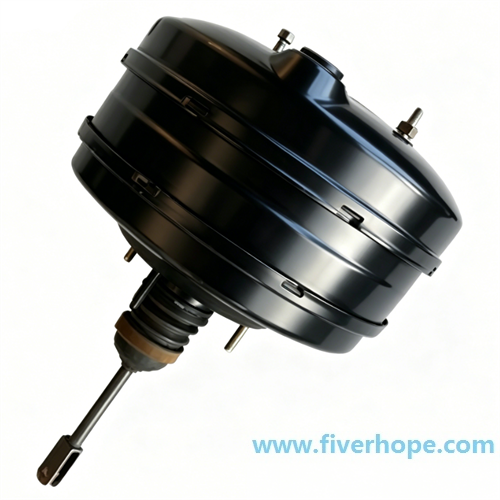

A0004311827 Booster Assy for Mercedes-Benz Sprinter 2-t Bus 901 902 1995 - 2006

Part Name : Booster, Vacuum Power Brake ; Master VAC Assembly, Servo freno
Part #.: 0004311827, A0004311827, PSA919

Conditions: Brand New, High Quality

This Part Fits:

Mercedes-Benz Sprinter 2-t Bus 901 902 1995 - 2006
Mercedes-Benz Sprinter 3-t Bus 903 1995 - 2006
Mercedes-Benz Sprinter 3-t Platform Chassis 903 1995 - 2006
Mercedes-Benz Sprinter 3-t Box 903 1995 - 2006
Mercedes-Benz Sprinter 4-t Bus 904 1996 - 2006
Mercedes-Benz Sprinter 4-t Box 904 1996 - 2006
Mercedes-Benz Sprinter 4-t Platform Chassis 904 1996 - 2006



Remarks:
Custom design is available(based on drawings or sample).



What is Brake Booster and its function in vehicle ?



The brake booster is designed to create a greater braking force from a minimum pedal effort, using a difference in atmospheric pressure and the engine’s manifold vacuum. It increases the pedal force 2 to 8 times depending on the size of the diaphragm. The brake booster is located between the brake pedal and the master cylinder.

When pressure is applied to the brake pedal, pressure is exerted on the booster air valve. With pressure created by the booster the master cylinder is applied. Should the booster malfunction, the normal mechanical braking force of the master cylinder is maintained.
